Knight A3 PRO™ DTF Printer 13” Inch Dual Head i1600 - Direct To Film Printer
Knight A3 PRO™ DTF Printer 13” Inch Dual Head i1600 - Direct To Film Printer

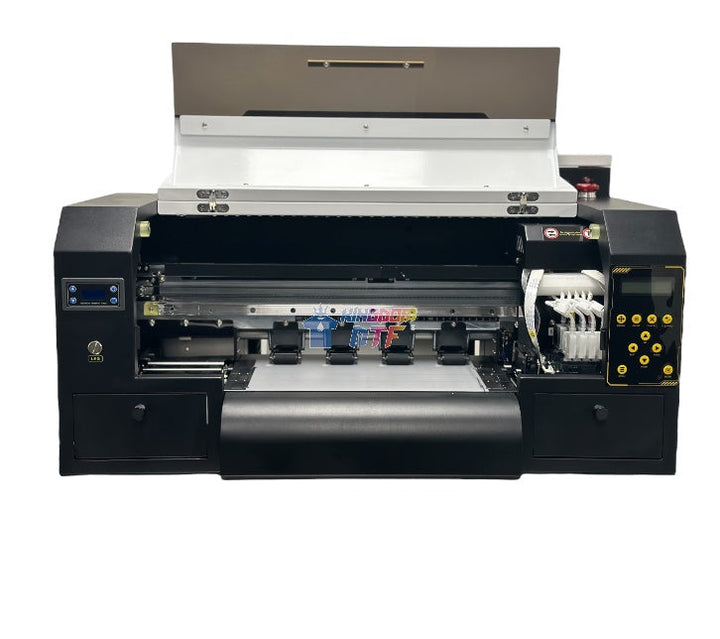

The Knight A3 PRO™ DTF Printer 13” Inch offers users a speed-optimized with new i1600 printheads, space-saving design with a 13" roll capacity (A3+ size), and is one of the most cost-effective options of its kind with advanced technologies. Its dual head system expedites printing, providing one printhead for white and another for CMYK to generate vivid, long-lasting prints, white ink circulation system for consistent prints, ink level alerts, and more. This printer makes a great upgrade to production lines with its Knight A3 PRO™ Shaker and Oven machine that takes up a quarter the space versus the big dtf printers.
Knight A3 PRO™ enables users to produce vivid and resilient prints on various materials, such as cotton, polyesters, blends, spandex, leather, and more, using our DTF Transfer Films, DTF Inks, and DTF Powder. Compared to White Toner and DTG, DTF Printing is the most popular textile printing technology on the market that can bring your business to the next level.
BENEFITS:
● Perfect for anyone, small to medium size businesses.

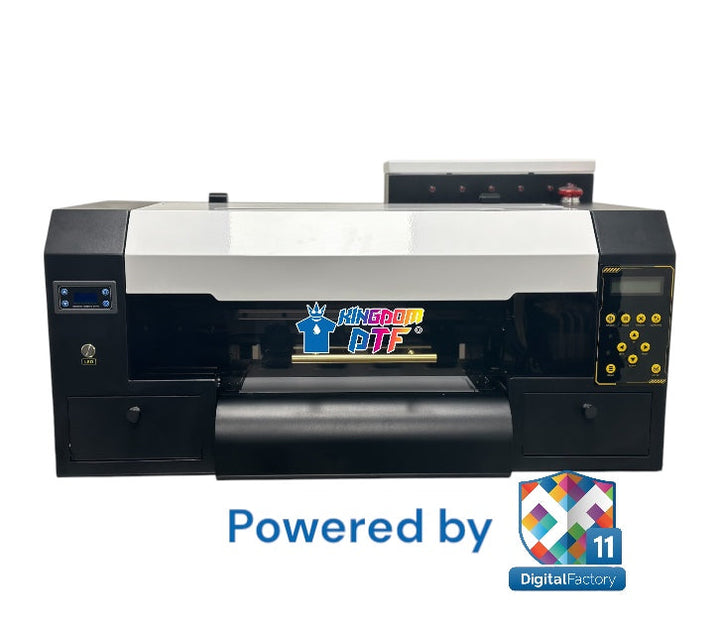

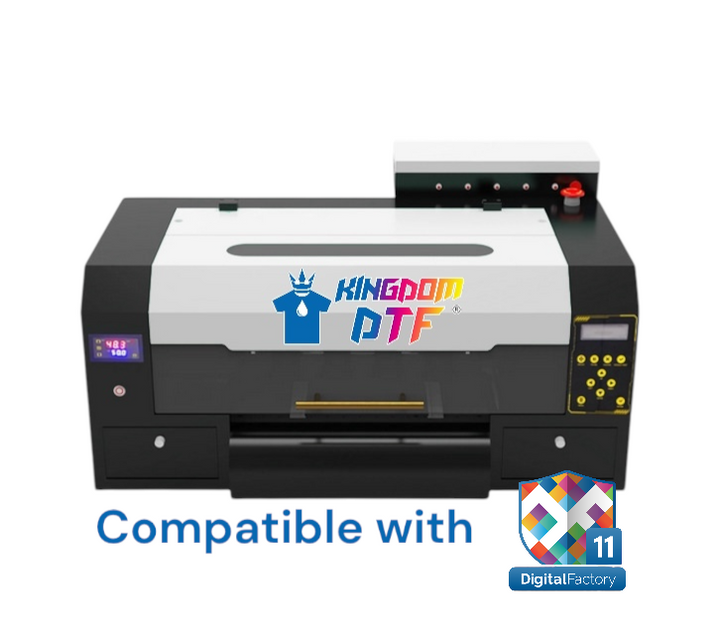

● Compatible with Fiery Digital Factory DTF.
● Nice and compact design to save space with solid and strong-designed interiors and exterior shells.
FEATURES:

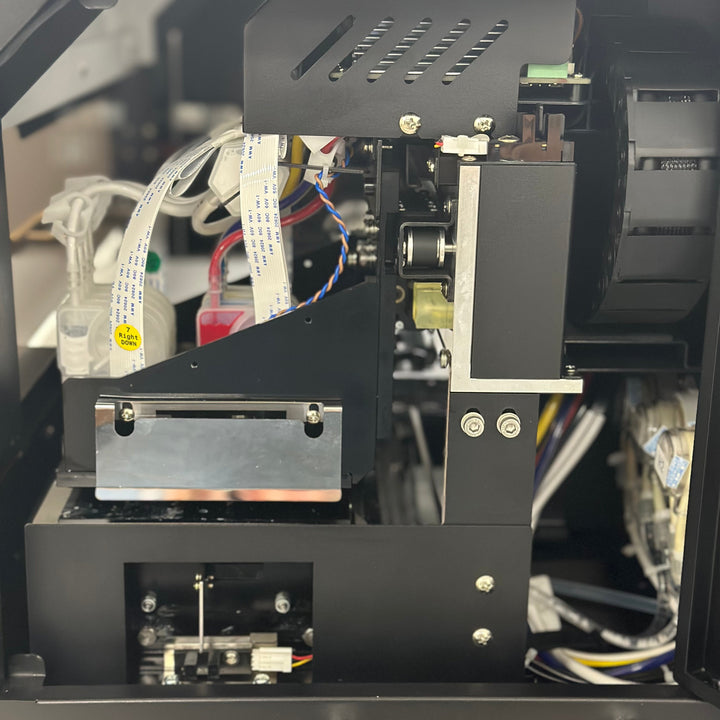

● Build in Speed in mind with Dual Head i1600 for faster speed and accuracy, one for White and one for CMYK.
● Advanced technology that can print 4X times faster than any desktop system. 45+ prints 11" x 11" per hour.
● Large print area that can print 12" and 13" inches Rolls (Can print sheets A3 and A3+)
● Uses Hoson boards for better performance.
● White Ink Circulation System is fully automatic to eliminate white ink separation, precipitation and clogging.

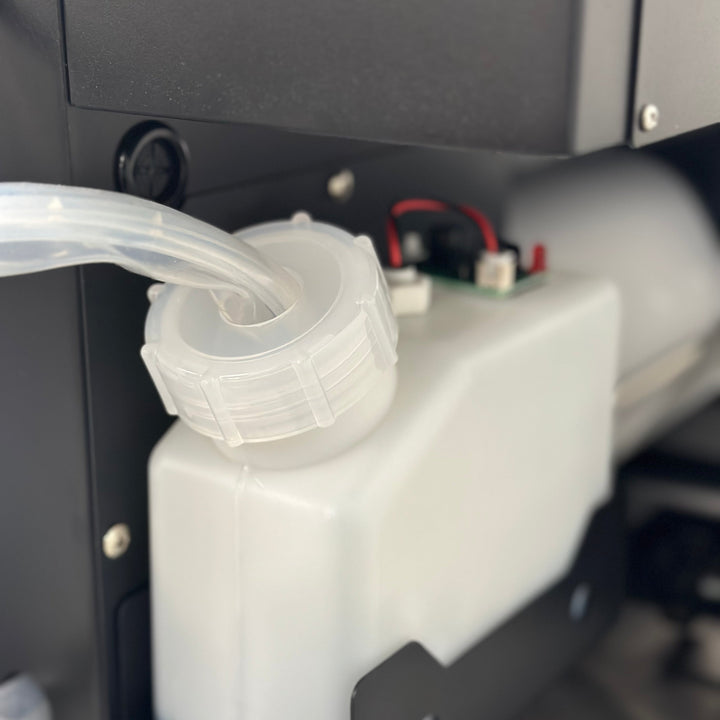

● Low Ink level alerts and Full Waste tank alert.
● Anti-coalition printhead sensors in both side to prevent any object from hitting the printheads.

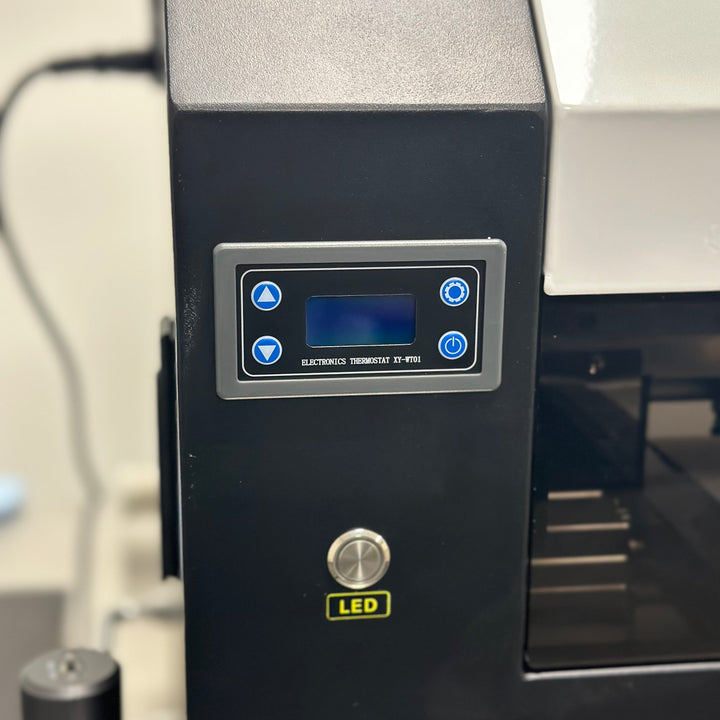

● Heat element to heat the platen to help inks get dry better.
● Suction fan for the platen to help film stay flat.
● Easy Roll Feeder on the back of the printer for easy feeding and attach it to a Knight A3 PRO™ Shaker & Oven.
● LED light to aid visibility in low light environments.
● Control Panel in front of the printer for easy access.
● Continuous Ink System with 500ml ink capacity for each color.
SPECIFICATIONS:
● Printhead: Dual Epson i1600 Printheads

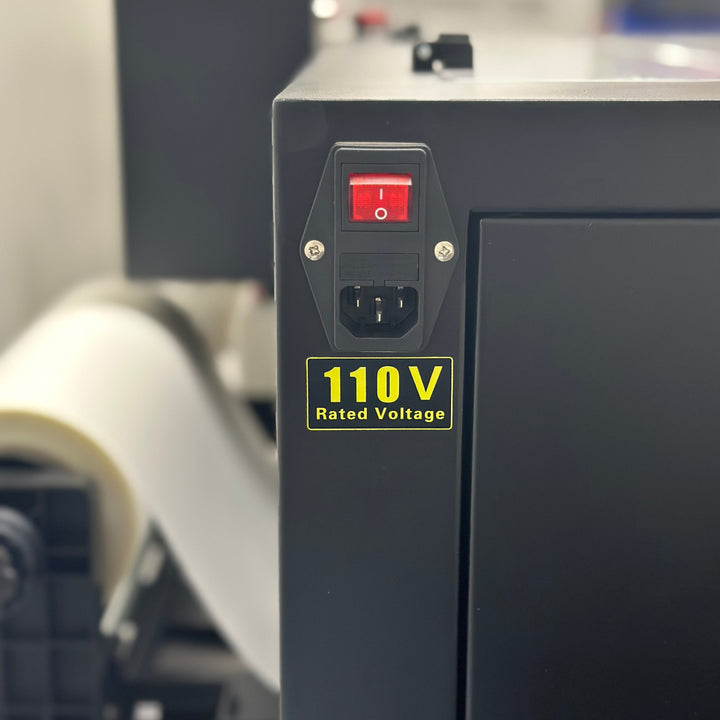

● Power: 110v / 15A / 1650 watts
● Ink Type: DTF
● Ink Technology: Bulk
● Mainboard: Honson
● Interface: TCP / IP (Ethernet Network)
● Max. Print Width: 13” inches (33cm)
● Printing Resolution (720x1200)
● Output: Based on design size 11" x 11", 1-2 minutes
● Software Compatible: Fiery Digital Factory RIP Software (Compatible with Windows 10 & 11 PC)
● Printer
●● Weight 125 LB
●● Dimensions (LxWxH): 33" x 25" x 20"
● Packaging
●● Crate Weight 176 LB (80kg)
●● Crate Dimensions (LxWxH): 46" x 26" x 26"
INCLUDED WITH YOUR PURCHASE:
● 1 Knight A3 PRO™ DTF Printer Dual Head with i1600 - Direct To Film Printer
● 1 Roll Feeder attachment
● 1 Power Cord
● 1 Ethernet Cord (to connect to network card)
● 2 i1600 Printheads (will need to be installed and calibrated)
● 8 Printhead Cables
● 8 Empty Dampers
● 6 Months Limited Warranty (please refer to the warranty info)
● PrintExp Interface Software
REQUIREMENTS:
● 110v 25amps single dedicated circuit outlet for printer.
● Climate control set to 72-75 degrees and 40-60% humidity.
● Vent to the outside with exhaust fan or using a fume extractor.
|
IMPORTANT NOTES: 1. By not using the Kingdom DTF brand inks and films will void any warranty for the printer or equipment. 2. All Printers and equipment sales are final. Please see our Returns / Refunds Policy here. 3. Is strongly recommend to avoid taking orders or offering prints until the printer is fully set up and you are comfortable with its operation. There is a learning curve with this type of printer, and it's important to ensure everything is functioning correctly before accepting any print jobs. 4. Due to high demand, this item can take 5-14 days to get ready. Please make sure you understand the time frame. 5. This item does not count toward the affiliate program. |
WHAT'S NOT INCLUDED:
● Kingdom DTF Inks
● Kingdom DTF Transfer Films
● Kingdom DTF Powder
● Digital Factory Rip Software
● Knight A3 PRO™ Shaker & Oven
● Computer or Laptop with Windows 10, or 11 with available USB port and card network port.
● Heat Press, Oven, Shaker Machine, or Heat Gun to finish curing the powder.
● Fumes Extractor
● Humidifier Monitor (to keep the humidity above 40% in the print room) - is recommended.
