Knight A1™ All in One DTF Printer 24” + Shaker & Oven - Direct To Film Full System
Knight A1™ All in One DTF Printer 24” + Shaker & Oven - Direct To Film Full System
The Knight A1™ All in One DTF Printer 24” Dual Head i3200 + Shaker & Oven system offers users a speed-optimized, space-saving that can fit in 5 feet x 5 feet square space, 24" roll capacity (A1 size), and is one of the most cost-effective options of its kind with advanced technologies. Its i3200 dual head system expedites printing, providing one printhead for White and another for CMYK to generate vivid, long-lasting prints. This printer makes a great upgrade to production and save space.
Knight A1™ enables users to produce vivid and resilient prints on various materials, such as cotton, polyesters, blends, spandex, leather, and more, using our DTF Transfer Films, DTF Inks, and DTF Powder. Compared to White Toner and DTG, DTF Printing is the most popular textile printing technology on the market that can bring your business to the next level.
BENEFITS:
● Perfect for anyone, small, medium, or big size businesses with printing volume.

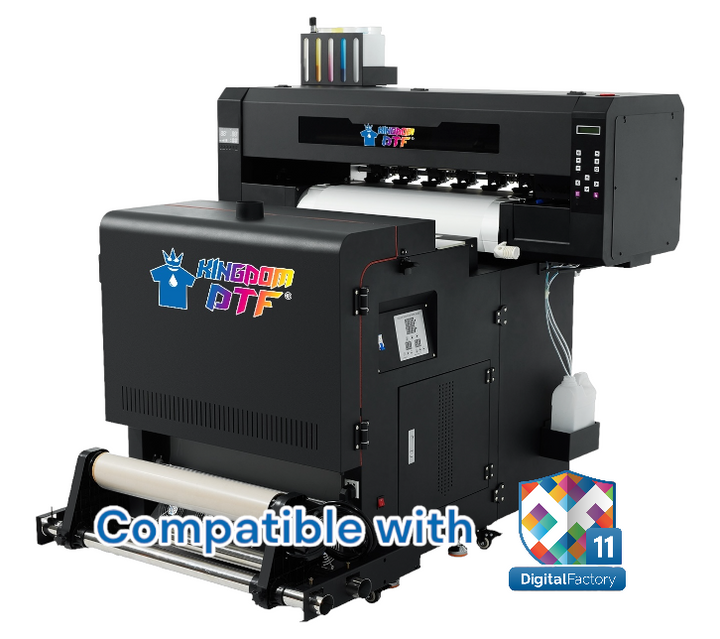

● Compatible with Fiery Digital Factory DTF.
● Nice and compact All in One (AIO) design to save space that fit in 5 feet x 5 feet square space with solid and strong-designed interiors and exterior shells.
FEATURES:
● Build in Speed in mind with Dual Head i3200 for faster speed and accuracy, one for White and one for CMYK.
● Advanced technology that can print 5X times faster than any desktop system. 70+ prints 11" x 11" per hour.
● Large print area that can print 12", 13", 15", 17", 20" and 24" inches Rolls.
● Uses Hoson boards for better quality.
● White Ink Circulation System is fully automatic to eliminate white ink separation, precipitation and clogging.
● Anti-coalition printhead sensors in both side to prevent any object from hitting the printheads.
● Heat element to heat the platen to help inks get dry better.
● Suction fan for the platen to help film stay flat.

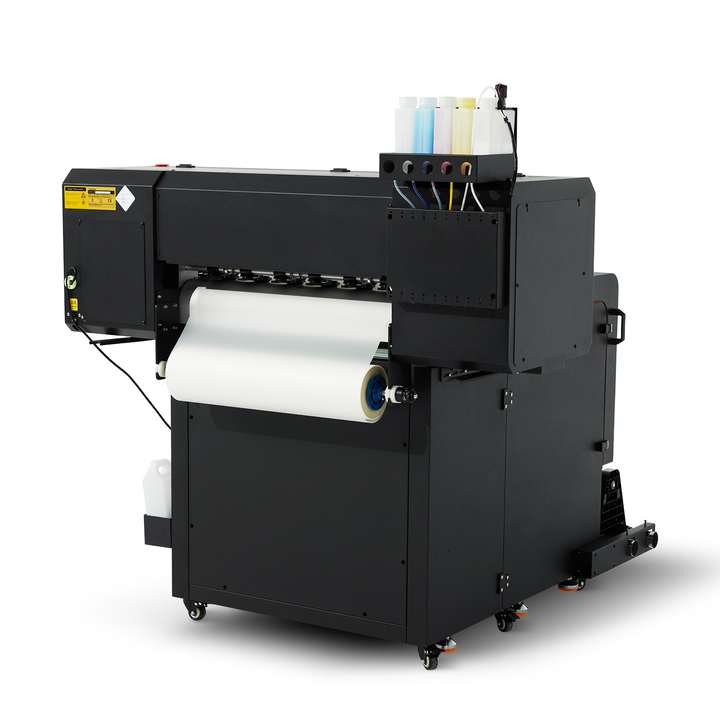

● Easy Roll Feeder on the back of the printer for easy feeding and attach it to a Knight A1™ Shaker & Oven.
● LED light to aid visibility in low light environments.

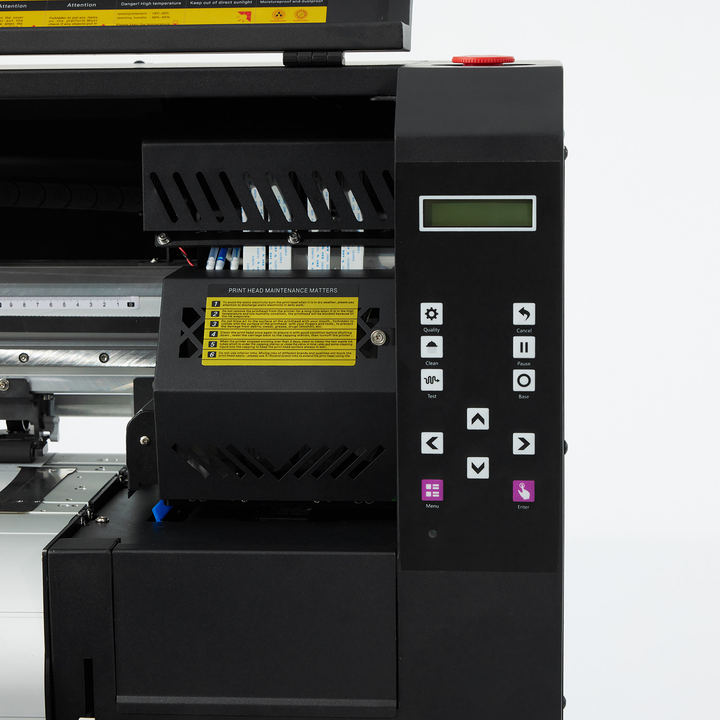

● Control Panel in front of the printer for easy access and management.
● Continuous Ink System with 500ml ink capacity for each color.
SPECIFICATIONS:

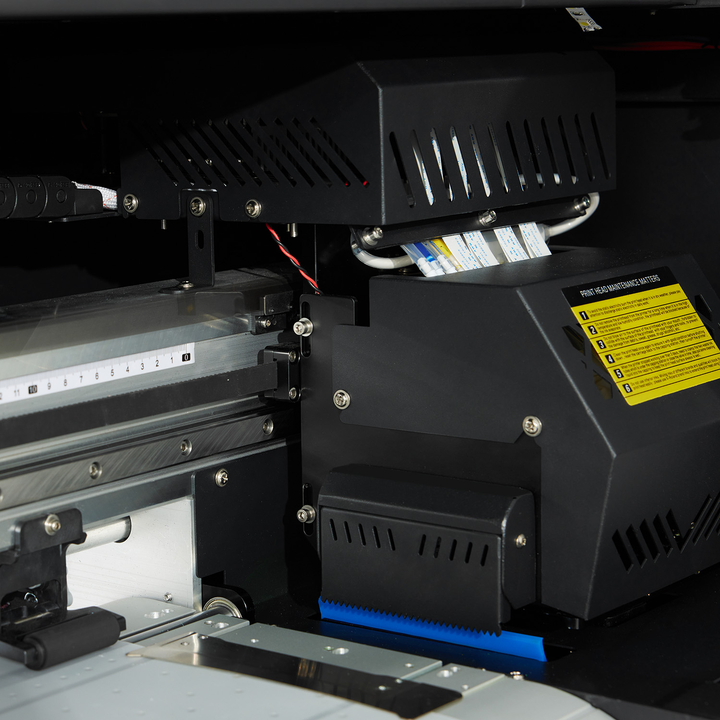

● Printhead: Dual Epson i3200 Printheads
● Power
●● Printer: 110v / 15A / 1650 watts
●● Shaker: 220v / 20A / 4400 watts (recommended 30 Amps single dedicated circuit outlet for shaker)
● Mainboard: Honson
● Interface: TCP / IP (Ethernet Network)
● Max. Print Width: 24” inches (60cm)
● Printing Resolution (720x1800)
● Output: Based on design size 12" x 12", 1-2 minutes
● Software Compatible: Fiery Digital Factory RIP Software (Compatible with Windows 10 & 11 PC)
● Printer
●● Weight 324 LB
●● Dimensions (LxWxH): 48" x 20" x 20"
● Shaker
●● Weight 260 LB
●● Dimensions (LxWxH): 43" x 32" x 37"
● Packaging
●● Printer (LxWxH): 58” x 24” x 24"
●● Shaker (LxWxH): 47” x 37” x 44"
INCLUDED WITH YOUR PURCHASE:
● 1 Knight A1™ All in One DTF Printer 24” Dual Head i3200 - Direct To Film Printer
● 1 Knight A1™ Shaker 24" Powder Shaker and Oven
● 1 Roll Feeder attachment
● 1 Power Cord for printer
● 1 Power Cord for shaker
● 1 Ethernet Cord (to connect to network card)
● 2 i3200 Printheads (will need to be installed and calibrated)
● 8 Printhead cables
● 8 Empty Dampers
● 1 Consumable Supply Pack including:
●● 1 Liter each of Kingdom DTF Inks - Cyan, Magenta, Yellow, Black, White
●● 1 Kingdom DTF Transfer Film Roll 24" inches (glossy or matte depending the availability)
●● 4 LBs Kingdom DTF Powder
●● 1 Room Humidifier Monitor
●● 1 8oz Cleaning Solution for wet capping station
●● 5 10ml Syringes for prime dampers
●● 50 Cleaning Swabs for cleaning
● 1 Fiery Digital Factory RIP Software (Cadlink)
● 1 PrintExp Software (interface)
● 12 Months Limited Warranty (please refer to the warranty info)
REQUIREMENTS:
● 220v 20amps or 30amps single dedicated circuit outlet for shaker.
● 110v 25amps single dedicated circuit outlet for printer.
● Climate control set to 72-75 degrees and 40-60% humidity.
● Vent to the outside with exhaust fan or using a fume extractor.
|
IMPORTANT NOTES: 1. By not using the Kingdom DTF brand inks and films will void any warranty for the printer or equipment. 2. All Printers and equipment sales are final. Please see our Returns / Refunds Policy here. 3. Is strongly recommend to avoid taking orders or offering prints until the printer is fully set up and you are comfortable with its operation. There is a learning curve with this type of printer, and it's important to ensure everything is functioning correctly before accepting any print jobs. 4. Due to high demand, this item can take 5-14 days to get ready. Please make sure you understand the time frame. 5. This item does not count toward the affiliate program. |
WHAT'S NOT INCLUDED:
● Computer or Laptop with Windows 10, or 11 with available USB port and card network port.
● Heat Press or Heat Gun.
● Fumes Extractor.
